Your location:Home > Products > LED Floor Tile >

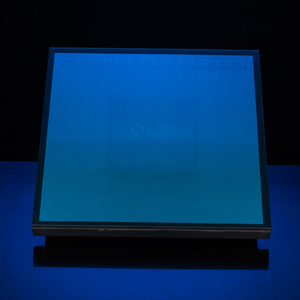

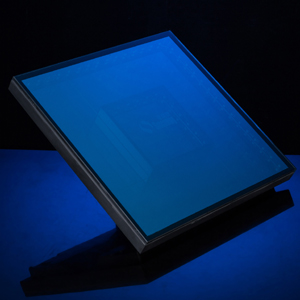

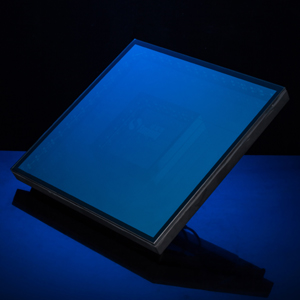

LED3D Floor screen

KTV, bar corridor, T stage, dance stage, shopping corridor, production conference, huge party, concert, outdoor plaza, etc


Product Detail:
Input voltage: AC90 ~ 245V Output voltage: DC12V Maximum power: 30W Number of LEDs: 192
Light source: 5050 SMD 3in 1 Refresh rate: 400Hz Brightness (CD / ㎡): 700
Resolution (L * W): 8 * 8 Panel material: tempered glass Base material: high strength ABS Bear the
weight: 500KG / m2 Before the protection level: IP65 at the end: IP54 Viewing angle: 120 °
Working temperature: -20 ~ +60 ℃ Life: ≥30,000 hours Insulation class: CLASSE II
Control mode: SD off-line control or online control Product Size: L500 * W500 * H66mm Net
Detail Info

Product Detail:
Input voltage: AC90 ~ 245V Output voltage: DC12V Maximum power: 30W Number of LEDs: 192

Light source: 5050 SMD 3in 1 Refresh rate: 400Hz Brightness (CD / ㎡): 700

Resolution (L * W): 8 * 8 Panel material: tempered glass Base material: high strength ABS Bear the

weight: 500KG / m2 Before the protection level: IP65 at the end: IP54 Viewing angle: 120 °

Working temperature: -20 ~ +60 ℃ Life: ≥30,000 hours Insulation class: CLASSE II

Control mode: SD off-line control or online control Product Size: L500 * W500 * H66mm Net

 weight: 8.8KGModel:SC-9009
The best artist can confuse your visual, point and line to plane can appear the 3D beauty of space.

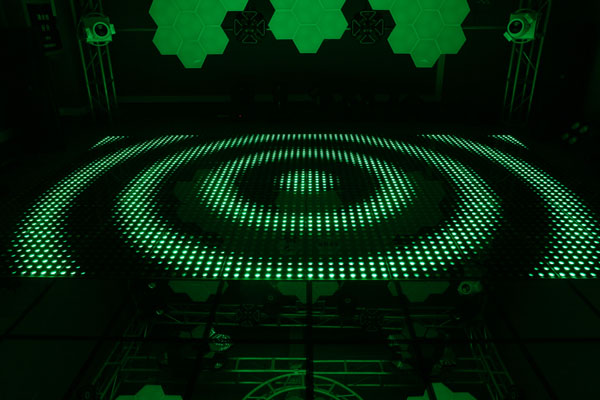

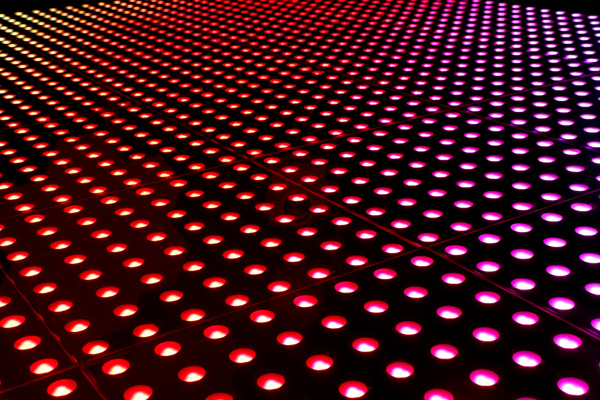

 LED 3D infinite dance floor, use the two lays temper glass to appear the infinite and reflect and expand more space,

 the multiple dimensional and bright light match up with the entertainment design, mutual complementation.

Input voltage: AC90 ~ 245V

Output voltage: DC12V

Maximum power: 30W

Number of LEDs: 192

Light source: 5050 SMD 3in 1

Refresh rate: 400Hz

Brightness (CD / ㎡): 700

Resolution (L * W): 8 * 8

Panel material: tempered glass

Base material: high strength ABS

Bear the weight: 500KG / m2

Before the protection level: IP65 at the end: IP54

Viewing angle: 120 °

Working temperature: -20 ~ +60 ℃

Life: ≥30,000 hours

Insulation class: CLASSE II

Control mode: SD off-line control or online control

Product Size: L500 * W500 * H66mm

Net weight: 8.8KG

The best artist can confuse your visual, point and line to plane can appear the 3D beauty of space. LED 3D infinite dance floor,

use the two lays temper glass to appear the infinite and reflect and expand more space,

 the multiple dimensional and bright light match up with the entertainment design, mutual complementation.

Product Features:

1.Using a panel to bring 3D vision, fashion, gorgeous, unforgettable.

2.Lighting effect match up with the whole condition space design, to be mutual complementation.

3.Adopt with TTL, DMX, & MADRIX

4.Easy installation, simple and fast.

Application

KTV, bar corridor, T stage, dance stage, shopping corridor, production conference, huge party, concert, outdoor plaza, etc.
